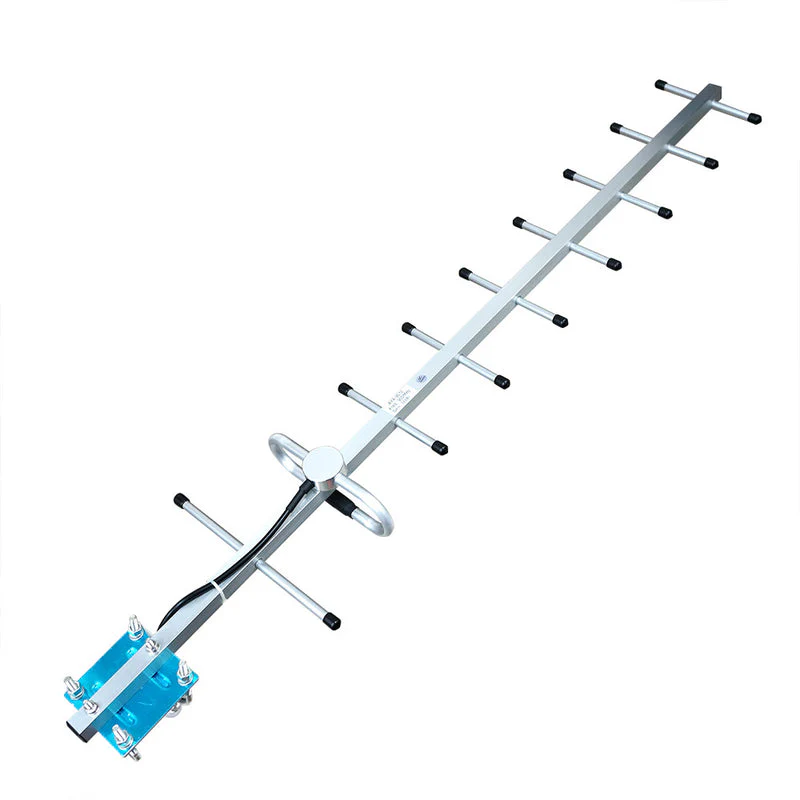

ALFA Yagi Antenna

A highly directional, high gain antenna that is weather proofed, best for establishing long range backhaul links.

Applications:

• 900MHz ISM Band
• Long-Range Direction Applications Point to Point Point to Multi-Point
• Non Line of Sight ( NLOS )
• GSM
• RFID
• SCADA
• Wireless Video Links
• 900MHz Cellular

Specs:

• Frequency Range: 824-960MHz
• Gain: 12dBi
• VSWR: ≤ 1.5

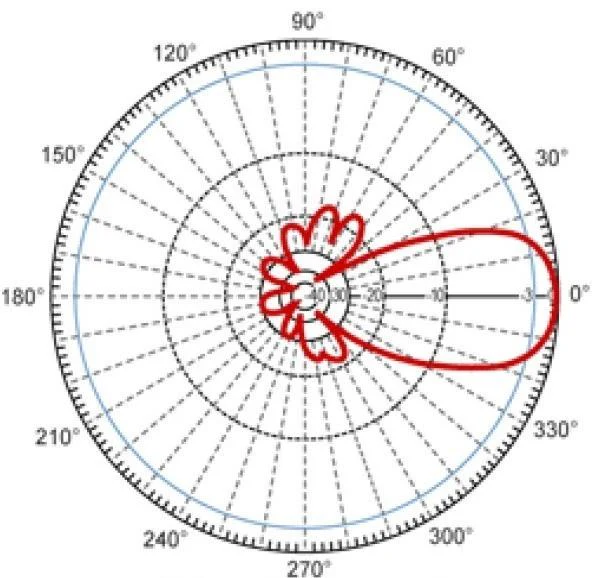

• Horizontal Beamwidth: 36°
• Vertical Beamwidth: 32°
• Impedance: 50Ω
• Maximum Input Power: 50W
• Connector: Type-N Female
• Wind Rating: 135 MPH
• Dimensions: 1100 x 180 mm

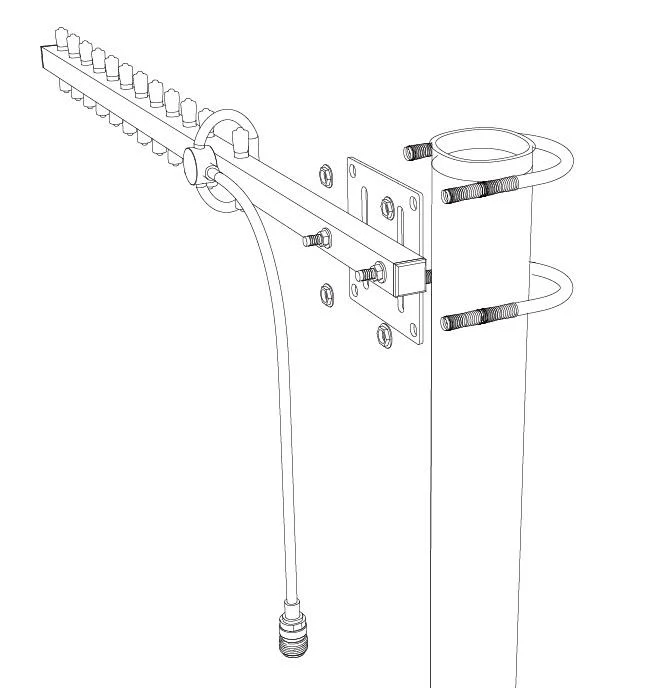

• Mounting Mast Diameter: ⌀30 to ⌀50 mm
• Operating Temperature: -40°C to 80°C
